Hi I did the offroad switch in my 2015 gmc sierra slt gas, im not getting power out of the yellow wire coming from switch to relay, what do i need to check for thanks
Were you able to solve your issue? I appear to be having the same issue with mine.

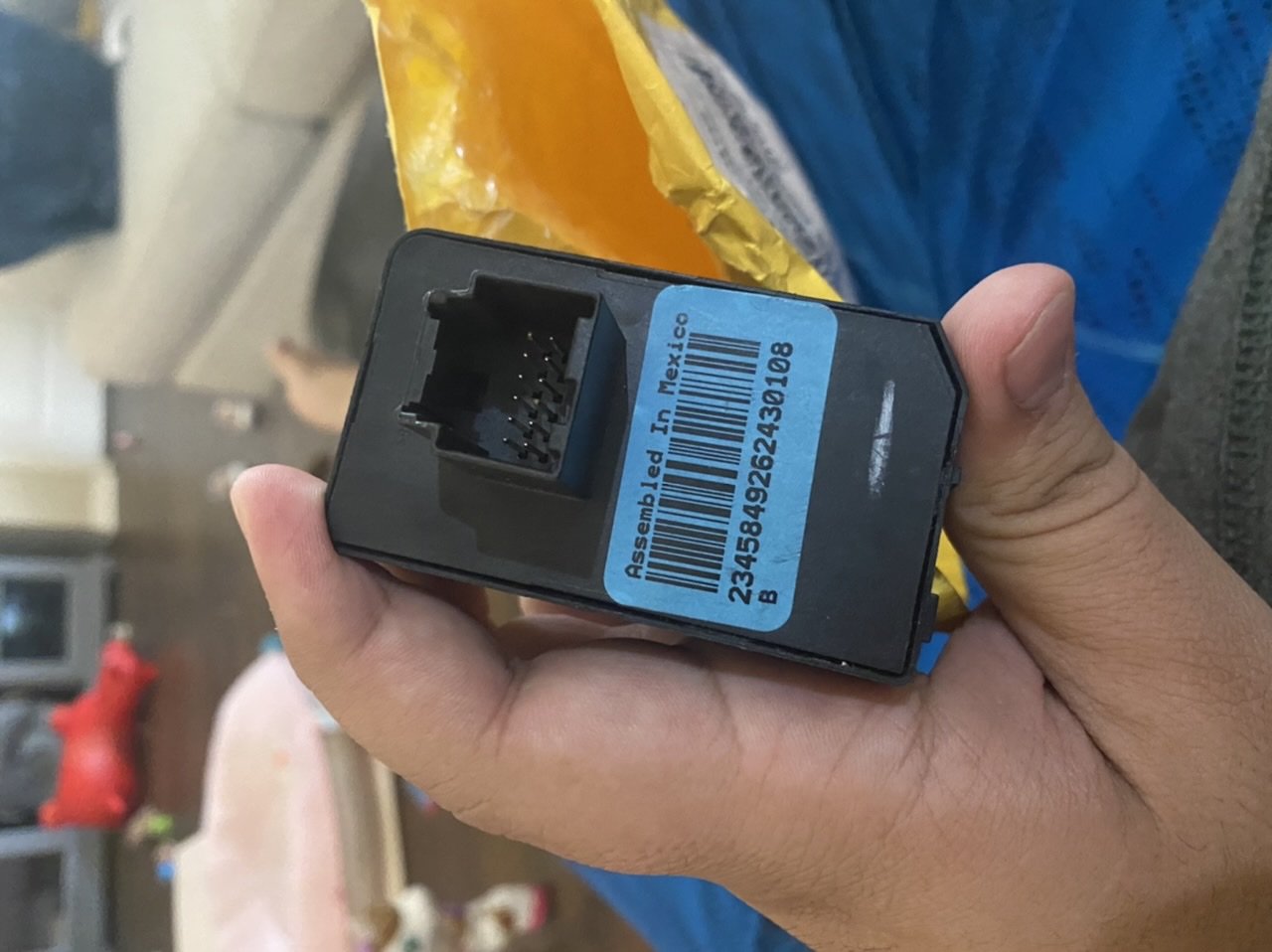

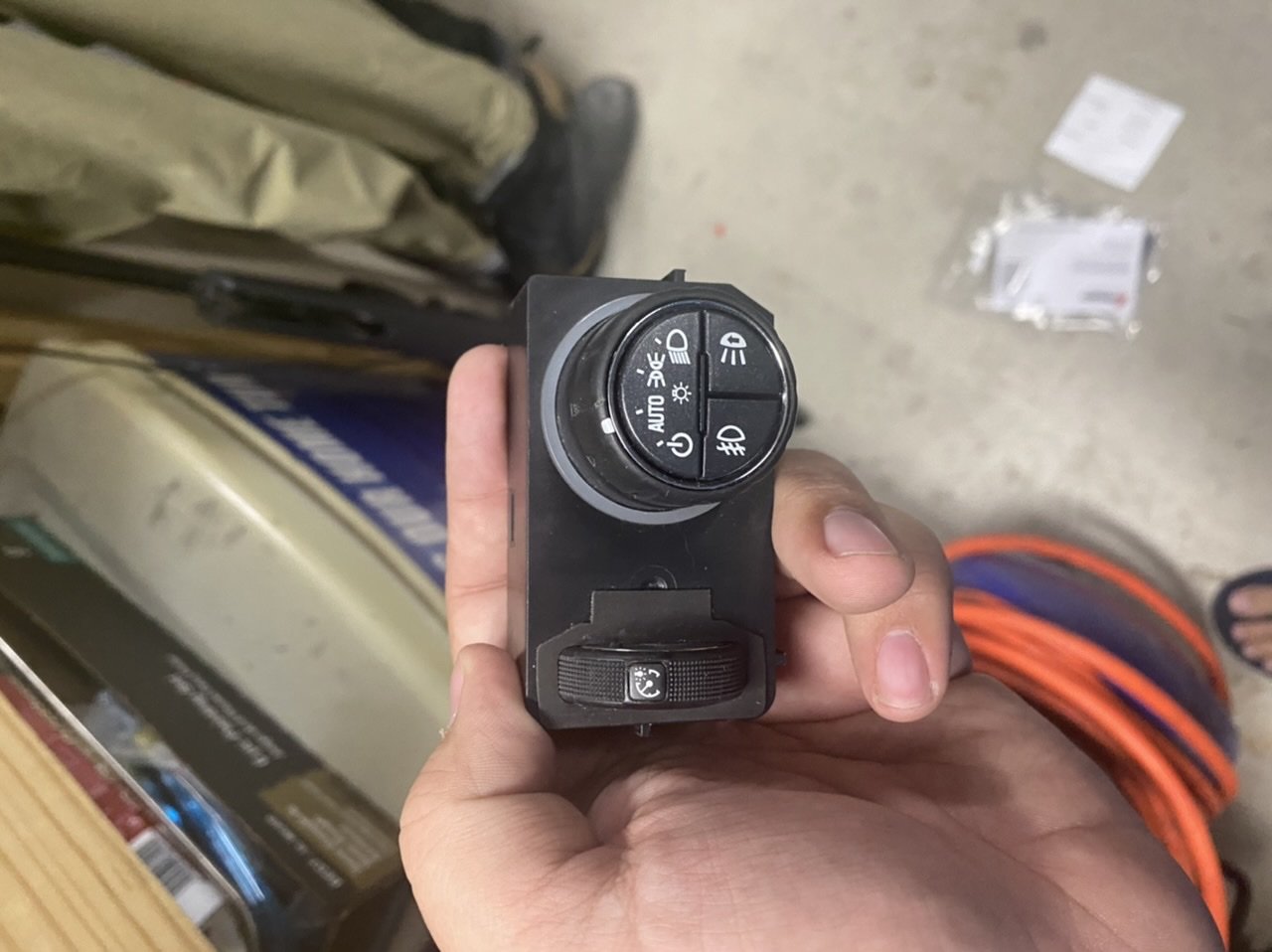

Light works connected directly to battery and through relay but the gm replacement switch will not turn it on.

Sent from my Pixel 5 using Tapatalk

  • Replies 473
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

TinkeringFox
TinkeringFox

Have you seen the Michael J Fox Edition Sierra/Silverado rolling down the road? Looks like the Toyota from Back to the Future. Anyway there is a really cool headlight switch with the option for Off-Ro

pgamboa
pgamboa

For you guys with 2014/2015 or anyone else that this doesn’t work for (due to BCMs not being programmed to output these triggers), please be patient with us. We have an alternate method that allows

pgamboa
pgamboa

Ok folks, for anyone wanting this headlight switch harness, I have them ready made, and ready to ship.   $35 shipped anywhere in the US.   They are built with the same specs as shown in the vide

Posted Images

asull79 Enthusiast

asull79

Posted
Posted
1 hour ago, pewterliftedz said:

I’ve got a blue backlight version for sale if anyone is interested $100 shipped obo



I will take it, send me pm with your preferred payment method, I do have PayPal.  Thanks

  • 2 weeks later...
JonnyB Enthusiast

JonnyB

Posted
Posted

Question for those who have successfully installed:



When your headlights and foglights are on and you go to turn on the light bar via the switch...do the foglights turn off or will they remain on with the lightbar?

  • Like 1
  • 3 weeks later...
  • 2 months later...
  • 2 weeks later...
superdave160 Enthusiast

superdave160

Posted
Posted (edited)

I just completed adding factory fog lights and an off-road light bar to my 2017 Silverado WT.  I installed the light switch with the fog and off-road light buttons and added the fog light wires between the switch and the BCM that were not installed from the factory.  I also installed the wires from the switch to the BCM for the off-road light.



I chose a bumper mount light bar.  It came with a harness with a relay and switch.  I cut off the switch and rewired the harness to connect to the BCM.  When wired up, the off-road light indicator displayed on my Denali cluster when the light was on.



My 2017 Silverado WT came with a black bumper without fog lights.  I installed a chrome bumper with the factory fog lights.  The light harness was still on the bumper, but the Silverado did not have the connector that mates to it.  I purchased an off-road light bar wire harness (again with a relay and a switch) and cut off the switch and rewired it to work with the fog lights and connect to the BCM.  However, the fog lights did not come on when the switch was pressed.  I learned that the fog light feature had to be enabled on a Silverado that did not come with factory fog lights.  White Auto and Media Services (WAMS) has a service that allows you to enable/disable features in your BCM.  I purchased the service and was able to enable the fog lights.

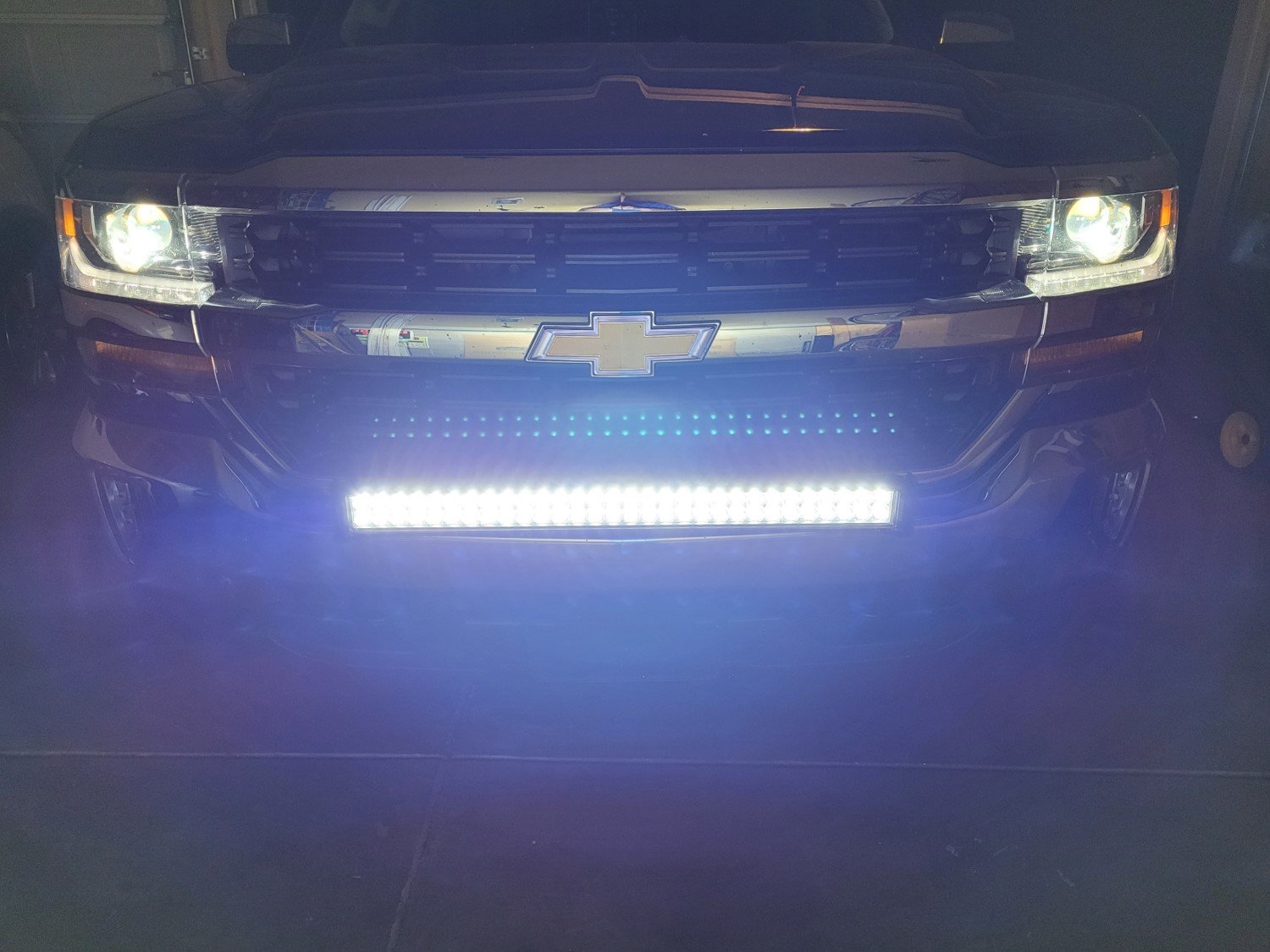

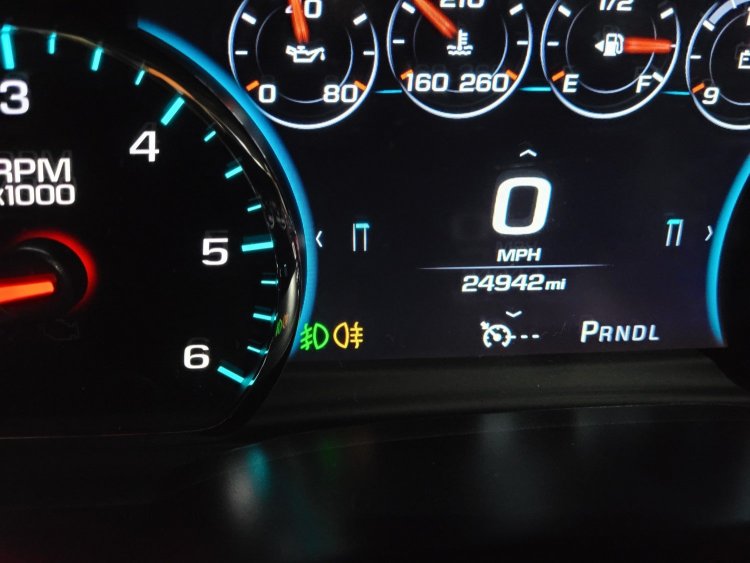

The fog and off-road lights now can be turned on and off independently (assuming it is dark enough) and their associated indicators display on the Denali cluster.



I want to thank TinkeringFox, the Harness Dr. and WAMS for their assistance in completing this upgrade.






Edited by superdave160
  • Like 1
superdave160 Enthusiast

superdave160

Posted
Posted
On 1/13/2021 at 1:45 PM, JonnyB said:

Question for those who have successfully installed:



When your headlights and foglights are on and you go to turn on the light bar via the switch...do the foglights turn off or will they remain on with the lightbar?

The lights are independent of each other.  You can have either on or both at the same time when the light detector on the dash has determined that it is dark outside.  When wired into the BCM, the off-road light won't come on during the day OR until the fog lights are on.

  • 3 months later...
giovannifh Enthusiast

giovannifh

Posted
Posted

First i want to open with a THANK YOU to @TinkeringFox and @pgamboa for all your help on this.



OK so i have a 2017 1500 Denali and i have been wanting to get rid of the 12V chargers up from (what am i going to do with 3 of them plus 1 in back seat???)



so instead of paying 100 bucks or so for the OEM switch i got a 22mm momentary switch for 8 bucks and installed it instead of one of the cigarette lighters up front.

I then used the harness from @pgamboa but hooked it up to the switch instead of the OEM headlight switch.


i used the ground wire from the 12V charger, spliced it to the neg of the indicator LED and the common leads.

the N.O. lead (switch output) wired to X5:5 of the BCM (Gray wire) and from the BCM (X1:12) back to pos LED indicator lead on the switch and spliced as trigger wire to the light bar relay.



now i just need to decide which light bar will fit my Denali grill with active shutter vents.

it's not alot of room but it has been done with some minor trimming.   probably a single row curved bar.

if anyone has recomandations please share 20210801_195400.thumb.jpg.34b920e68b44cf520328dd2fe7f96be9.jpg20210801_195151.thumb.jpg.53c73d14d069c355c45afd7b1cb70700.jpg20210801_195313.thumb.jpg.eb7f2783bf08a191b7ecb83f5cbbcc03.jpg20210801_195216.thumb.jpg.6f7a088f06cc52968865c9b78d205892.jpg

  • Like 3
JimCost2014 Senior Enthusiast

JimCost2014

Posted
Posted
On 4/19/2021 at 7:36 PM, superdave160 said:

I just completed adding factory fog lights and an off-road light bar to my 2017 Silverado WT.  I installed the light switch with the fog and off-road light buttons and added the fog light wires between the switch and the BCM that were not installed from the factory.  I also installed the wires from the switch to the BCM for the off-road light.



I chose a bumper mount light bar.  It came with a harness with a relay and switch.  I cut off the switch and rewired the harness to connect to the BCM.  When wired up, the off-road light indicator displayed on my Denali cluster when the light was on.



My 2017 Silverado WT came with a black bumper without fog lights.  I installed a chrome bumper with the factory fog lights.  The light harness was still on the bumper, but the Silverado did not have the connector that mates to it.  I purchased an off-road light bar wire harness (again with a relay and a switch) and cut off the switch and rewired it to work with the fog lights and connect to the BCM.  However, the fog lights did not come on when the switch was pressed.  I learned that the fog light feature had to be enabled on a Silverado that did not come with factory fog lights.  White Auto and Media Services (WAMS) has a service that allows you to enable/disable features in your BCM.  I purchased the service and was able to enable the fog lights.



The fog and off-road lights now can be turned on and off independently (assuming it is dark enough) and their associated indicators display on the Denali cluster.



I want to thank TinkeringFox, the Harness Dr. and WAMS for their assistance in completing this upgrade.






Great job!!!



Got curious about the Yellow Fog Lamp icon and found this:





And, yes, there is a Rear Fog Lamp Indicator symbol, in yellow/amber. This indicator also is only active when the lamps are actually on. The lines point to the right in this symbol, indicating a rear-facing beam. They are rare in North America but required in Europe. They make a vehicle more visible in poor weather to trailing drivers.

Either are switched on, so look for a similar symbol on the light switch or switches.

  • Like 1
  • 5 weeks later...
chopjaw Enthusiast

chopjaw

Posted
Posted (edited)

My Gawd this is an awesome thread.  I have a 2018 2500HD Denali, looking to add a lED lightbar and found this thread.  I'd like to see if anyone has done this to a 2018 and if someone has the blue switch for sale?  What about the pigtail harness (custom) that goes from switch to lightbar?



Thanks so much for all of the info.

Chop.



Edited by chopjaw
  • Like 1
MikeBMW Senior Enthusiast

MikeBMW

Posted
Posted
26 minutes ago, chopjaw said:

My Gawd this is an awesome thread.  I have a 2018 2500HD Denali, looking to add a lED lightbar and found this thread.  I'd like to see if anyone has done this to a 2018 and if someone has the blue switch for sale?  What about the pigtail harness (custom) that goes from switch to lightbar?



Thanks so much for all of the info.

Chop.



With your 2500, maybe check here for more info?
https://www.gm-trucks.com/forums/forum/174-2015-2019-silverado-hd-sierra-hd/

  • 1 month later...
Putergod Enthusiast

Putergod

Posted
Posted

My eyes are hurting from reading 27 pages...

I have a 2015.5 3500 HC Dmax. I have read about the latching relay, and such. I currently have the sports bar, and want to add lights to it (though I'll likely be using aftermarket lights, as the ones GM sells they are very proud of).

My question is, has the "kit" been produced for the pre-2016 models yet, or do I need to build it out?

Also, if I do need to build it out, is there a more detailed wiring diagram for using the latching relay module?



TIA

Putergod Enthusiast

Putergod

Posted
Posted

Also, two more questions...

Has anyone determined if the 2015.5 has the BCM programing or not?

Does anyone have a blue switch for sale?
