OEM Off-Road Light Switch Install

TinkeringFox

By TinkeringFox
in Modifications & Accessories

 Share

Recommended Posts

pewterliftedz Enthusiast

pewterliftedz

Posted
Posted
On 9/17/2018 at 2:02 PM, pewterliftedz said:

Just ordered 23458492 from ebay, we shall see what comes in.  For $25 it was worth a shot

https://www.ebay.com/itm/NEW-OEM-2016-2017-SILVERADO-HEADLIGHT-FOGLIGHT-SWITCH-23458492/192480372064?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m1438.l2649

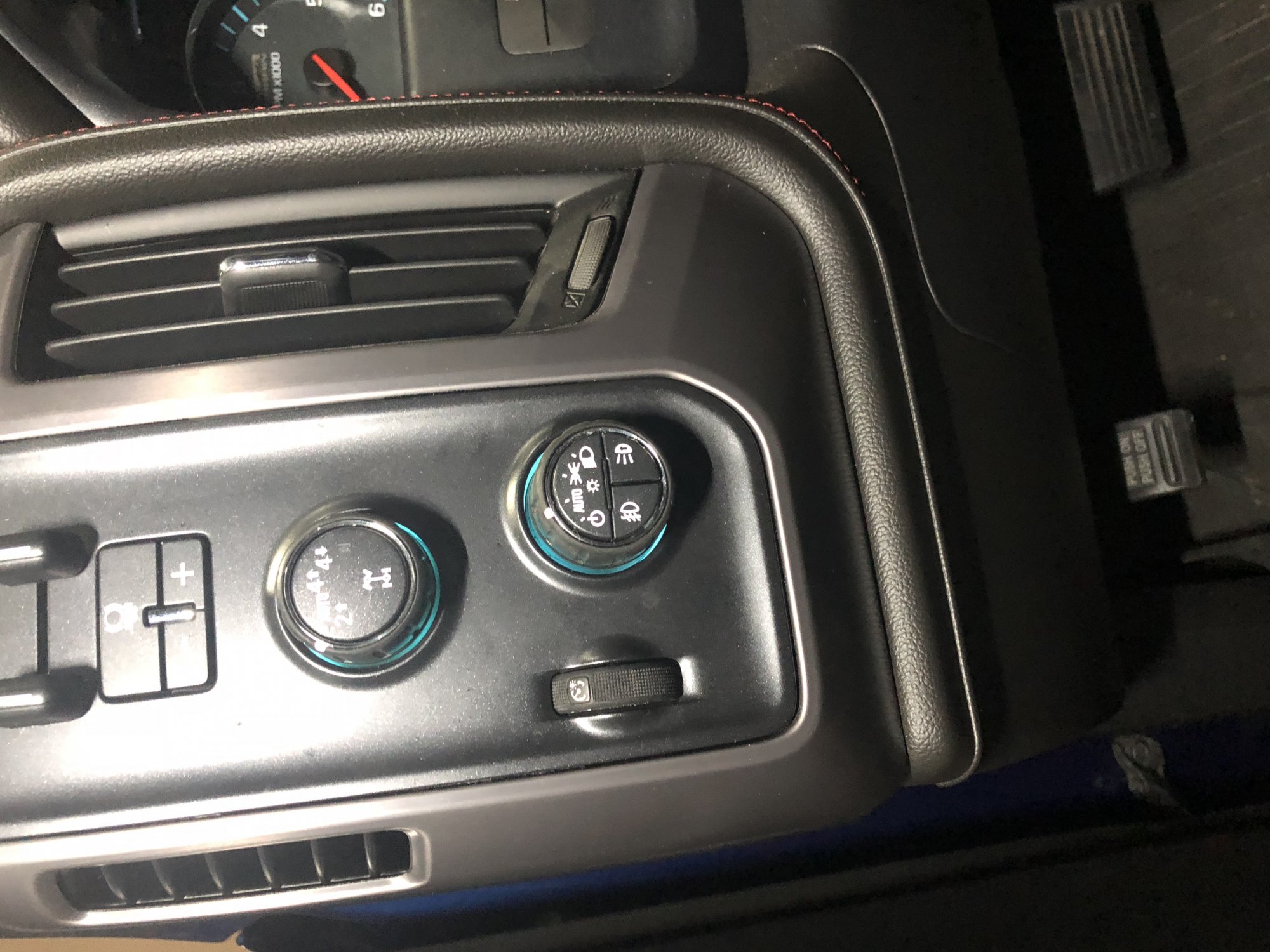

I got my $25 switch in, and went ahead and installed it.  Now I just need to get my harness from Phil, and windshield bracket from SDHQ


  • Like 2
  • Replies 473
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

TinkeringFox
TinkeringFox

Have you seen the Michael J Fox Edition Sierra/Silverado rolling down the road? Looks like the Toyota from Back to the Future. Anyway there is a really cool headlight switch with the option for Off-Ro

pgamboa
pgamboa

For you guys with 2014/2015 or anyone else that this doesn’t work for (due to BCMs not being programmed to output these triggers), please be patient with us. We have an alternate method that allows

pgamboa
pgamboa

Ok folks, for anyone wanting this headlight switch harness, I have them ready made, and ready to ship.   $35 shipped anywhere in the US.   They are built with the same specs as shown in the vide

Posted Images

02SOMWS6 Enthusiast

02SOMWS6

Posted
Posted

I also got my switch, going to put it in the same time I get the wiring from Phil...



Lights came today, I like them but not sure it's exactly what I'm looking for. The mounting plate bends a little on the sport bar, so the lights sit at a bit of an angle. Might be able to shim them straight, or move them more towards the center. Or I might use these as cargo/reverse lights and hang them under the bar.







  • Like 4
Popo1984 Enthusiast

Popo1984

Posted
Posted
On 9/22/2018 at 5:41 PM, pgamboa said:

Ok folks, for anyone wanting this headlight switch harness, I have them ready made, and ready to ship.



$35 shipped anywhere in the US.



They are built with the same specs as shown in the video by Tinkering Fox.



Harness is labeled for easy installation!



Thanks to @Tinkering Fox for collaborating with me on this project!



PM me to order.








Sent from my iPhone using Tapatalk



Got my harness today Phil. Thanks. Now i just need to figure out which lights i want.

  • Like 1
mammut Enthusiast

mammut

Posted
Posted

Got mine too from Phil.  Trying to find a decent quality bar for behind my 2500 grill.

  • Like 1
RACERX7775 Enthusiast

RACERX7775

Posted
Posted
On 9/25/2018 at 6:12 PM, Cburge95 said:

Okay well it appears as though this switch won’t work in the 2014s. I just made my harness following TinkeringFox’s video and my switch doesn’t do anything. No light on the instrument cluster and the switch doesn’t change to amber. Can anyone confirm this? I’m assuming the BCM isn’t configured for it.


Sent from my iPhone using Tapatalk

Uh oh!!! I got my switch and installed it. It works perfectly. Lights and backlighting all work like factory.  I ordered the harness from Phil. I hope it works!!! Im not concerned if the switch lights up a different color or if the light on the dash comes on, if it even has it. All i want is for my light bar actually come on at least with the long press. It would be nice if i could just tap the button though.. maybe someone else could confirm if the 2014 LTZ Z71 even has that ORL icon on the dash.

  • Like 1
ESMD Enthusiast

ESMD

Posted
Posted

Installed my switch and harness this evening and noticed two things:

1.) Switch doesn't activate when in Park. Truck has to be out of Park in order for the switch to work.

2.) Switch will also turn the headlights and parking lights on too, just like if you press the fog light button.

Overall, I'm happy with it. The instructions were perfect and it was great having the pre-made harness.

On a side note, I do have an extra switch (blue color) because I accidentally ordered two. I did plug it in and test it and it does work. If anyone is looking for one, send me a PM.

  • Like 1
Tleesmith14 Enthusiast

Tleesmith14

Posted
Posted

Damn that’s some crap about not working in park.  I can understand the other lights coming on but why not allow it to come on in park? Wonder if you can set the parking brake and trick it?

ESMD Enthusiast

ESMD

Posted
Posted
Damn that’s some crap about not working in park.  I can understand the other lights coming on but why not allow it to come on in park? Wonder if you can set the parking brake and trick it?
Set the parking brake and put the truck in Neutral.
Cburge95 Enthusiast

Cburge95

Posted
Posted

I just tried again on my ‘14 and put it in drive and still no dice. [emoji17]


Sent from my iPhone using Tapatalk

RACERX7775 Enthusiast

RACERX7775

Posted
Posted
2 hours ago, Cburge95 said:

I just tried again on my ‘14 and put it in drive and still no dice. emoji17.png


Sent from my iPhone using Tapatalk

Is there anyone else on here with a 2014 that has done this?



Cburge95, do you have the lights using a relay or are you just trying to run it directly off of the switch?

Cburge95 Enthusiast

Cburge95

Posted
Posted
Is there anyone else on here with a 2014 that has done this?

Cburge95, do you have the lights using a relay or are you just trying to run it directly off of the switch?

I haven’t tried it with anything hooked up to it yet. I wanted to test to see if it’d even work before running all the wires out underneath the hood to my light bar. Because theoretically it should supply 12v to the yellow wire when the switch is depressed right? Even without anything hooked up to it?


Sent from my iPhone using Tapatalk
  • Like 1
pgamboa Senior Enthusiast

pgamboa

Posted
Posted

For you guys with 2014/2015 or anyone else that this doesn’t work for (due to BCMs not being programmed to output these triggers), please be patient with us.

We have an alternate method that allows you to use the OEM headlight switch to still drive whatever lights you want, but uses a different method.

We are working very hard between our day jobs, family, etc...to bring you these amazing mods :)

So please be patient with us.


Sent from my iPhone using Tapatalk

  • Like 7
