2020 2500 Duramax. Is anyone else having problems with their trailer lights? I’m having problems with the lights on all but one of my three trailers. Left turn signal and brake is not working. Took it to the dealer and they gave me some bs about how the truck can’t run led lights or more than 10 amps and blew me off. So essentially my brand new truck I bought for towing can’t tow a trailer with more than two tail lights. One of the two it isn’t working on is led and one is not and it runs the led lights just fine, just not the left turn or brake on both.

  • Replies 64
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Pfc1
Pfc1

I would think that if it works on one of your 3 trailers it's probably not the truck. I would double check all the connections and lights on the affected trailers just to make sure everything is good

Larry Connally
Larry Connally

I have a trailer that I have towed for over 7 years with my 2006 duramax. I hooked new 2019  duramax to it and the only lights that work are hazards and park lights. Brakes don’t work hooked up to the

In2racn
In2racn

This trailer light flicker issue concerns me... if I leave my trailer connected for a week, I risk killing the battery. Hard to believe this is "normal".      Video of trailer lights fl

Posted Images

Pfc1 Enthusiast

Pfc1

Posted
Posted

I would think that if it works on one of your 3 trailers it's probably not the truck. I would double check all the connections and lights on the affected trailers just to make sure everything is good there. I would second guess most of the info I get from the tech's, they have led me astray before, just saying. Maybe you could hook one of your other trailers up to a friend's truck to see if the lights work, just a few suggestions.

  • Like 1
davester Senior Enthusiast

davester

Posted
Posted

it's hard to say that anymore, as new trucks try to get cute and sense if lights are out, so the truck could be doing something wonky because the trailer lights draw too much/little power from what the truck wants.

Jordan94 New Member

Jordan94

Posted
  • Author
Posted
3 hours ago, Pfc1 said:

I would think that if it works on one of your 3 trailers it's probably not the truck. I would double check all the connections and lights on the affected trailers just to make sure everything is good there. I would second guess most of the info I get from the tech's, they have led me astray before, just saying. Maybe you could hook one of your other trailers up to a friend's truck to see if the lights work, just a few suggestions.

I’ve hooked up a couple other trucks to the trailers and they work totally fine. It’s going back to the dealership this Thursday and I’m not taking it back till I can tow a trailer.

Pfc1 Enthusiast

Pfc1

Posted
Posted

Sounds like a plan, if you have exhausted all other avenues that's all that is left, good luck.

sdelam Enthusiast

sdelam

Posted
Posted

Noticed the same thing on my 2020. I have an adapter (7 round to flat 4) with the led status lights in it. When plugged into either the bumper or bed receptacle the led for the turn signals flash continuously. I don’t have a trailer with a flat 4 plug to verify but it appears the truck is looking for a signal from those before it will energize the park/running light plug. I installed a led bed light on the underside of the BAK Mx4 that has a 2 prong plug thinking i could use the in bed receptacle to power it but the park/run pin is dead.

  • 3 weeks later...
powerhaulic Enthusiast

powerhaulic

Posted
Posted (edited)

Truck is looking for a load before energizing the circuit.

i went thru this installing a tailgate light bar, had to tap the actual tail lights to power the light bar.

i'm betting a correctly placed resistor is what is needed.

when plugging a trailer into the truck it takes 20 seconds or so before the trailer lights actually come on

Edited by powerhaulic
Basketcase Enthusiast

Basketcase

Posted
Posted
On 8/29/2019 at 12:44 AM, jprash78 said:

I have a 2020 2500HD AT4 and so far the lights on my boat trailer are working they way they should.  I don't think I'm much help to fix your problem but I did find this info https://techlink.mynetworkcontent.com/?p=11176. The lights were pulsing when the truck was off which appears to be normal.

But now I have a sled deck in the bed of the truck for hauling snowmobiles and it uses a 4 pole connector for running tail lights, running lights, signals, and brake lights.  But all those lights will do is pulse when the truck is on and when the truck is off.  Anyone have an idea how to get the 4 pole connector in the bed of the truck working the accessory lights correctly?

Also have a 2020 AT4 and Marlon Xplore Pro II sled deck with the rear light bar... Hoping we can come up with a fix before snow flies...

sdelam Enthusiast

sdelam

Posted
Posted
3 hours ago, MTU Alum said:

Did any of you try "add accessory" thru your trailer app?  It's in your trailer profile section of the app.

I did, no love for the 2 prong light connector on the 4 way in the bed.

SkidooSteve12 Enthusiast

SkidooSteve12

Posted
Posted (edited)
On 8/24/2019 at 4:28 PM, Jordan94 said:

2020 2500 Duramax. Is anyone else having problems with their trailer lights? I’m having problems with the lights on all but one of my three trailers. Left turn signal and brake is not working. Took it to the dealer and they gave me some bs about how the truck can’t run led lights or more than 10 amps and blew me off. So essentially my brand new truck I bought for towing can’t tow a trailer with more than two tail lights. One of the two it isn’t working on is led and one is not and it runs the led lights just fine, just not the left turn or brake on both.

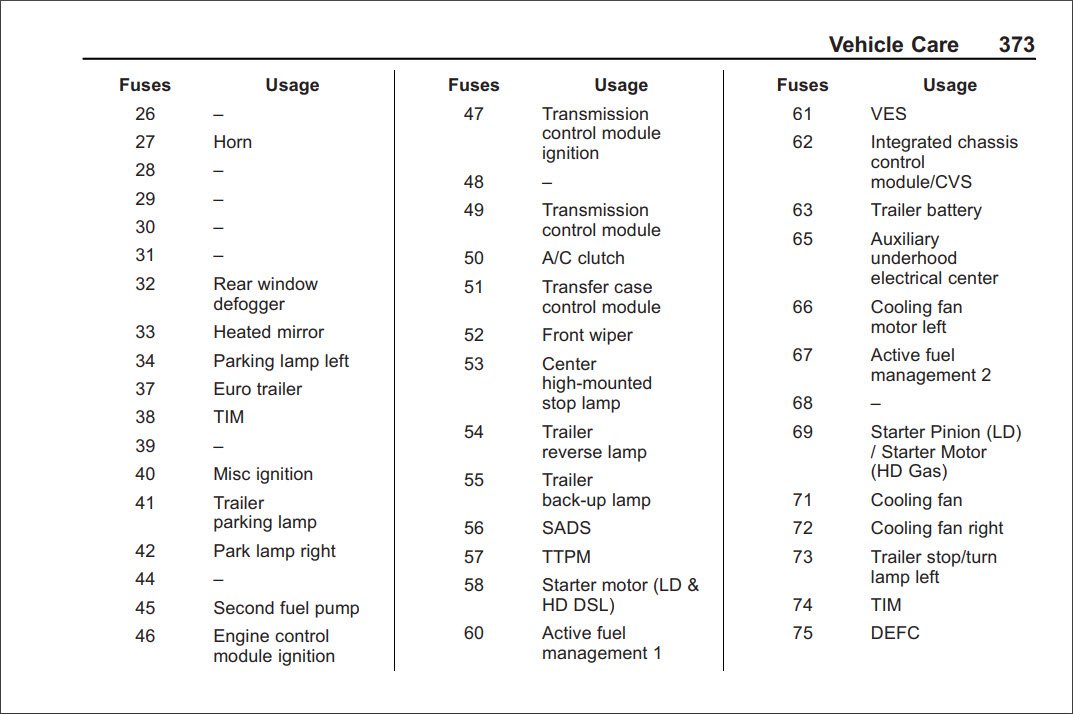

I doubt it is the fuse, but something in that trailer lighting wire circuit because the trailer left turn signal and trailer brake lights use the same fuse #73.



















Edited by SkidooSteve12
Added larger separate pictures
  • 1 month later...
In2racn Enthusiast

In2racn

Posted
Posted

My 2020 Denali 3500 flashes the trailer lights every couple of minutes. The trailer lights seem to work as normal when driving and using the trailer. However, once parked overnight or even for a few minutes, the trailer lights flash quickly and momentarily. A quick flash of the rear trailer lights (only tail lights, not cargo lights) every couple of minutes.

AT4 HD Ron Enthusiast

AT4 HD Ron

Posted
Posted

My trailer lights flash also but much more frequently!  Two different trailers and both do it - just a very quick flash when they are hooked up and truck is off.

powerhaulic Enthusiast

powerhaulic

Posted
Posted
1 hour ago, AT4 HD Ron said:

My trailer lights flash also but much more frequently!  Two different trailers and both do it - just a very quick flash when they are hooked up and truck is off.

Had my at dealer this week, for this and a couple other small issues.

Said to be normal operation.

Ryan Evans Enthusiast

Ryan Evans

Posted
Posted

I'm in the same situation. New marlon deck connected in bed via 4 pin. When I apply brakes or turn signal it disconnects to truck then works fine when I dont touch brakes or turn signal.
