Rear View MIrror Options

brisk00

By brisk00
in Modifications, Wheels & Tires

 Share

Recommended Posts

Raven2m Enthusiast

Raven2m

Posted
Posted (edited)

Easy swap but a pain to get the two longer screws back in correctly, glue issue was not a problem but did the swap on a warm day and the plug came loose fairly easily truck was sitting in the sun for a few hours which might have helped

Edited by Raven2m
  • Replies 247
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Semedar
Semedar

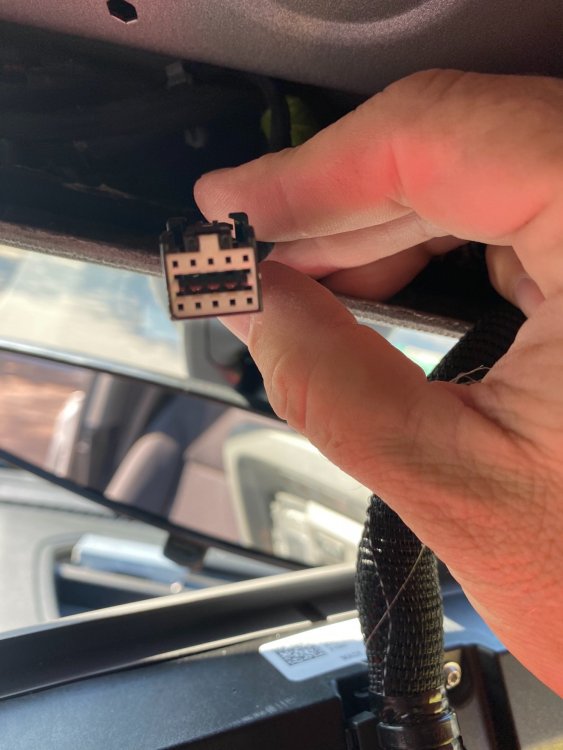

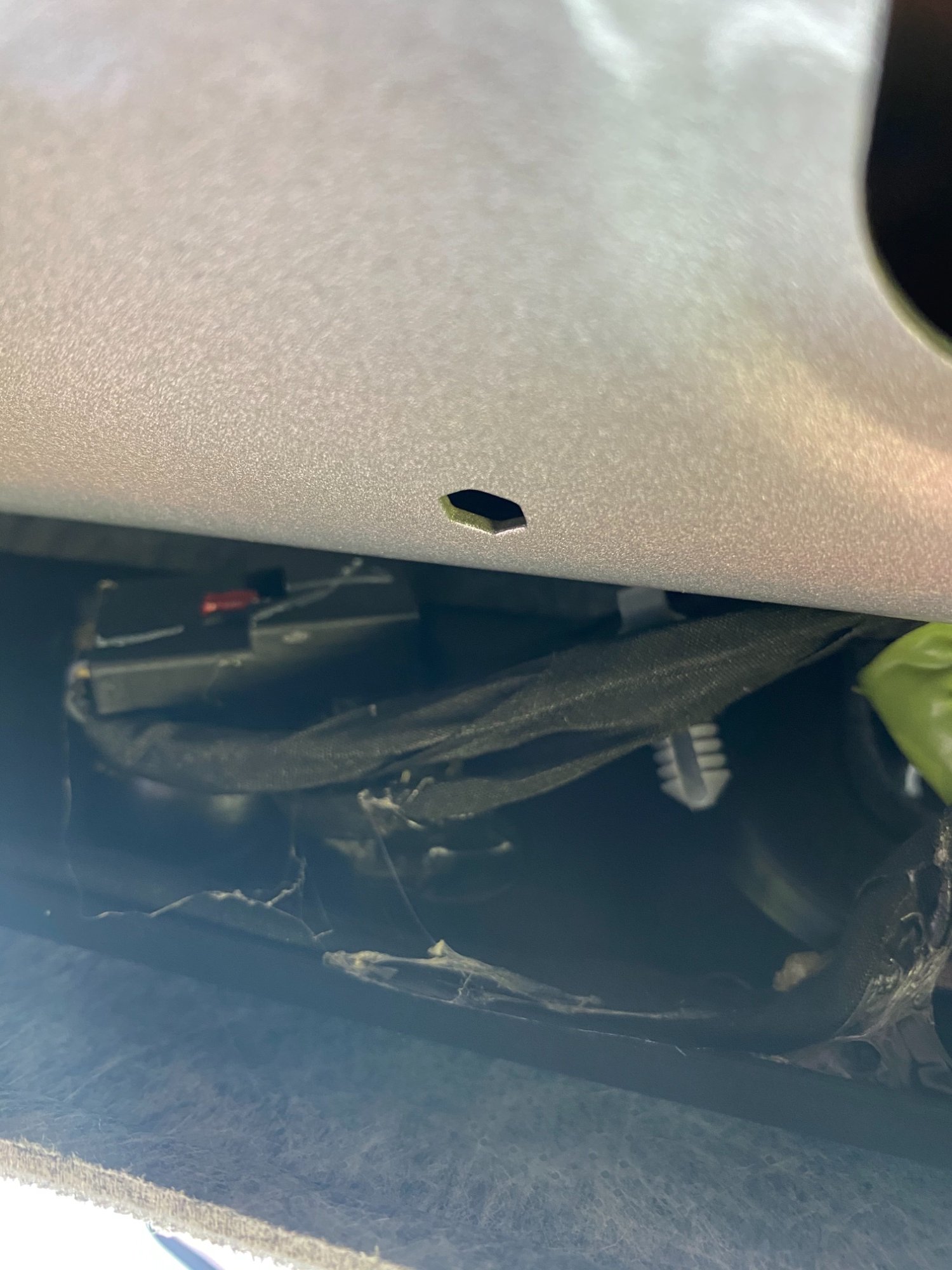

I took some pictures to maybe help some people! I saw that there are three plugs up there! One for the rear view mirror and two I don't know what for. I'm hoping it's for the rear view mirror camera o

mfbearded
mfbearded

did mine today...its a quick and easy upgrade. ill provide a quick run down of the process.  the plastic cover came off at first in one piece. gently pried at the sides and it slide right off. th

brisk00
brisk00

So I finally had time to do mine yesterday.  Like others have said, the hardest part is removing the black cover behind the mirror.  It's in two pieces.  I was able to get the larger piece loose relat

Posted Images

Djr1209 Enthusiast

Djr1209

Posted
Posted

I recently received my 2021 Trail Boss Custom and of course it has the “dumb” mirror. I went ahead and pulled down the console which only has OnStar and overhead lights, pretty basic. There are the 3 unused harnesses like others have mentioned. The dab of glue that holds the harness I need to upgrade my mirror is a little bit of a pain. I used a flathead screwdriver and sort of dug into the glue and just slowly wiggled and pried and it came up.



Now I know the harness is there I will order mirror with the garage door controller. Did anyone ever figure out what the other two harnesses are for?




  • 3 months later...
Bill Birmingham New Member

Bill Birmingham

Posted
Posted

This thread is so confusing.  It's about 2019-2021 trucks.  Why are guys outside of those years posting here rather than making a thread for their years and thus, cross contaminating the thread???

  • Like 1
  • Thanks 1
  • 2 months later...
Mcropper514 Enthusiast

Mcropper514

Posted
Posted

So I did this swap over the weekend.  I went with part number 13540312.

Got the harness freed pretty easily by using a hair dryer.

I did break the clips on the mirror cover insert so I had to order a new one of those.

I will say I haven't really notice the mirror working.  I've read others say it's not as noticeable as others, but I also haven't driven at night yet.  The closest I had was this morning when the sun was coming up.

I also have my windows tinted.



Anybody else have something similar?  Wondering if the mirror I got isn't good?

Thanks for the feedback.

steig Enthusiast

steig

Posted
Posted (edited)

I have the Gentex auto dimming mirror for sale. Had it in my 2021 Silverado. Works great, excellent condition. Plug and play, no wiring needed.

$100








Edited by steig
Hotwheel Enthusiast

Hotwheel

Posted
Posted

Is there anyone that went to install the factory auto dim mirror and couldn't find the plug. I have a 2020 WT and I don't think it is there

steig Enthusiast

steig

Posted
Posted
On 10/22/2021 at 2:41 PM, Hotwheel said:

Is there anyone that went to install the factory auto dim mirror and couldn't find the plug. I have a 2020 WT and I don't think it is there

Mine was super easy to find and connect to mirror.

  • 2 weeks later...
Hotwheel Enthusiast

Hotwheel

Posted
Posted

Well WT models do not have harness with the plug for the auto dim mirror. Can anyone tell me the color code for the wires?

Black -

Red +

Green ?

Pink ?

Gray ?

GETGONE Enthusiast

GETGONE

Posted
Posted
On 11/4/2021 at 11:40 AM, Hotwheel said:

Well WT models do not have harness with the plug for the auto dim mirror. Can anyone tell me the color code for the wires?

Black -

Red +

Green ?

Pink ?

Gray ?



Green is reverse trigger wire

Pink is auto dim outside mirror(unsure if left or right)

Gray is the other auto dim outside mirror(also unsure if left or right)



You really only need positive and ground. The reverse trigger just disables the dimming when you're backing up. It's only really an issue if you back out of a dark garage into bright sun, but I've had it on other vehicles with the auto dim on full time and it never bothered me.

  • Thanks 1
  • 1 month later...
A-wax New Member

A-wax

Posted
Posted

Hey so I know I’m late to this party but I’ve been curious about the mirror swap thing too and adding vanity mirrors with a damn light. So after some research and reading through all 14 pages here while taking in the leg work some of y’all have done, it seems that there is only one wire harness for the headline and it seems it includes the the wire for the auto-dimming mirror and the vanity lighting it also seems that it includes adding the video rear view camera as well. Now who is brave enough to pull down the entire headliner to look for the connections??


 84711896 - that’s the GM part number for the headliner wire harness.
13595368 - the actual GM auto dimming mirror.

13536995 - the GM auto dimming mirror that includes  video

13532977 - the GM auto dimming morror with video and with the home link buttons on the bottom

  • Thanks 1
  • 2 months later...
Rally6.2RST Enthusiast

Rally6.2RST

Posted
Posted

For anyone thinking about performing the video mirror swap.  I have some excellent condition DRZ oem video mirrors and mirror kits for sale if anyone is interested. 380 shipped for mirror and 675 shipped for total kit (video mirror/harness/light/camera.  Delete if not allowed.  They are also listed on ebay for $400 and $750.  Ebay charges tax to customer and me then takes fees so I am trying to make it so we all win.

  • 3 months later...
Truck RamRod Enthusiast

Truck RamRod

Posted
Posted (edited)

Has anyone tried this mod on a 22 refresh RST because I'm trading my 21 RST tomorrow?



I used the 13540312 mirror on my 21 and it has worked perfectly with the wiring harness in the head liner. From my initial once over the shroud around the mirror is much larger, I guess for the crash avoidance equipment. Just going to check here first before I order the same mirror.

Edited by Truck RamRod
Revised Part#
GETGONE Enthusiast

GETGONE

Posted
Posted

I have the crash avoidance on my 21 Custom as part of the Safety Confidence package. I had to Dremel part of the bottom of the mirror mount because it interfered with the camera. It didn't take much and was able to put the plastic surrounds back on with no issues. The mirror I used was one from a truck with the towing package. I don't know what the part number is offhand. I found it on ebay for $45 and won the auction at that price.

Truck RamRod Enthusiast

Truck RamRod

Posted
Posted
41 minutes ago, GETGONE said:

I have the crash avoidance on my 21 Custom as part of the Safety Confidence package. I had to Dremel part of the bottom of the mirror mount because it interfered with the camera. It didn't take much and was able to put the plastic surrounds back on with no issues. The mirror I used was one from a truck with the towing package. I don't know what the part number is offhand. I found it on ebay for $45 and won the auction at that price.

If the mirror is a GM part look on the back (towards the windshield) driver side of the mirror there should be a part number.
